Double TDF flange forming machine for rectangular duct

FOB Reference Price:Get Latest Price
$100.00 - $1,000.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
2T-15
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 YEAR
Core Components:
Motor
Certification:
ISO, ISO9001:2000
Brand Name:
TENROY
Condition:
new
Applicable Industries:
Manufacturing Plant
Weight:
2600
Place of Origin:
Anhui, China
Power(W):
4
Dimension(L*W*H):
2800x2200x1200mm
Warranty:
1 YEAR, One Year
After-sales Service Provided:
Video technical support, Online support, Engineers available to service machinery overseas
Sheet Thickness (mm):
1.2
Production Capacity:
100
Key Selling Points:
Energy saving
Name:
Double TDF flange forming machine for rectangular duct
Raw material:
Steel
Type:
Semi Automatic
Color:
Customized
Advantages:
Automatic Metering
Power:
5.5KW
Machine type:
Flange forming
Supply Ability
Supply Ability:
100 Set/Sets per Month Double TDF flange forming machine for rectangular duct
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai, China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

Product Introduction

Double linkage flange machine can finish the flange forming one time at the two ends of the air duct. The lead rail at the mobile terminal adopts high precision, high stiffness, high reliability and high load capacity liner guide rail which makes the movement easily and saves labor. It can be used alone or coordinate with large air duct production line. To compare with a single machine, it has high process efficiency, beautiful and stable forming shape, which will form strong process ability. This equipment will be the first choice for companies that have large capacity of processing, limited time and less workers. The plate metal can not only be shaped bilateral simultaneous but also unilateral forming. It’s suitable for processing 0.5-1.5mm plate thickness. The width of the work piece is adjustable and the adjusting range is 600-1500mm. This equipment is suitable for specialization production.


Specifications:

Model
Power
(kw)
Plate
thickness
(mm)
Flange
height
(mm)
Weight
(kg)
Appearance
(mm)
2-T-12
4
0.5-1.2
35+-0.5
2600
2800x2200x1200
2-T-15
5.5
0.8-1.0
35+-0.5
2800
2800x2200x1200

Main Features

1. Bilateral simultaneous flange forming, process thickness is between 0.5-1.5mm, work piece’s width is adjustable.
2. Double screw locking.
3. Process speed 14m/min.

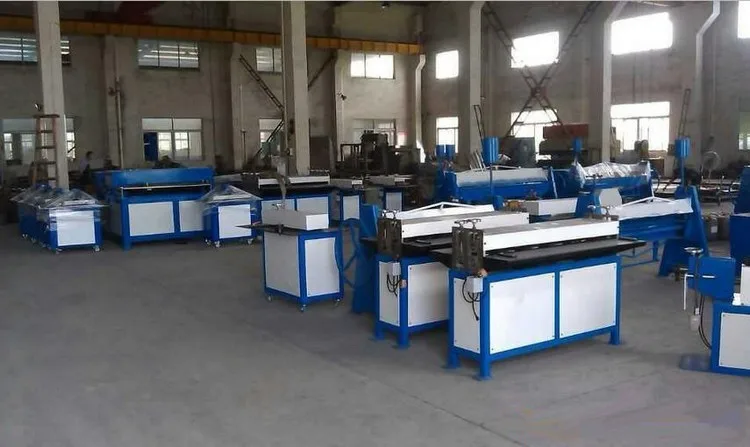

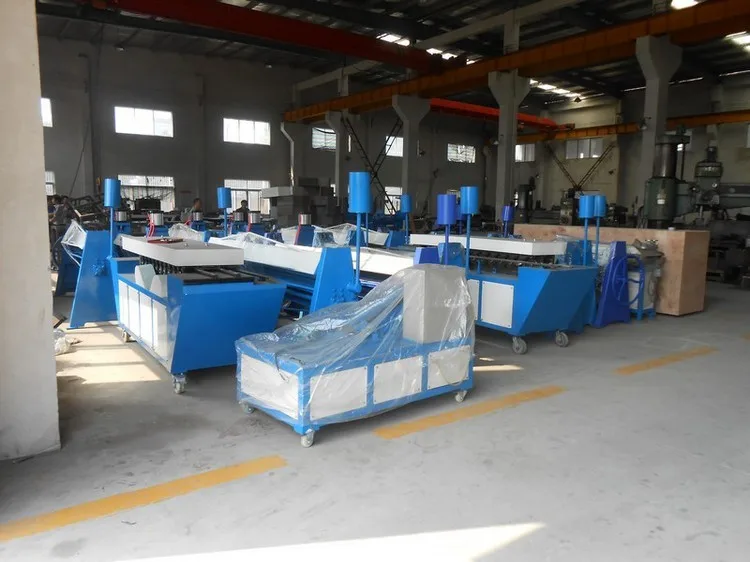

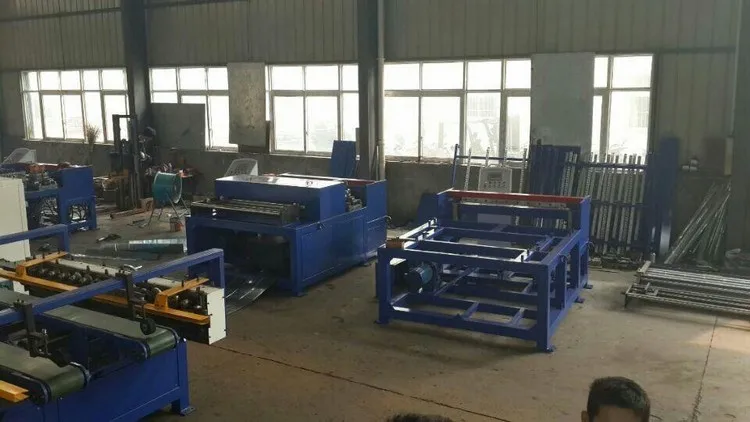

Factory View

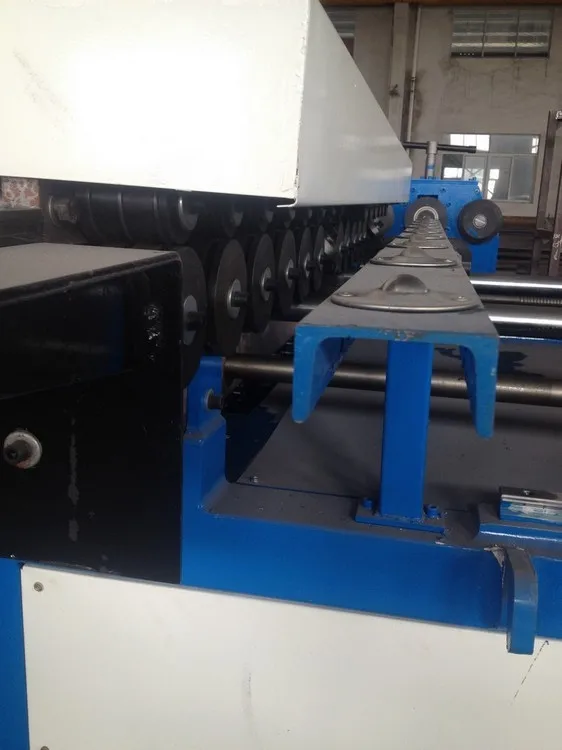

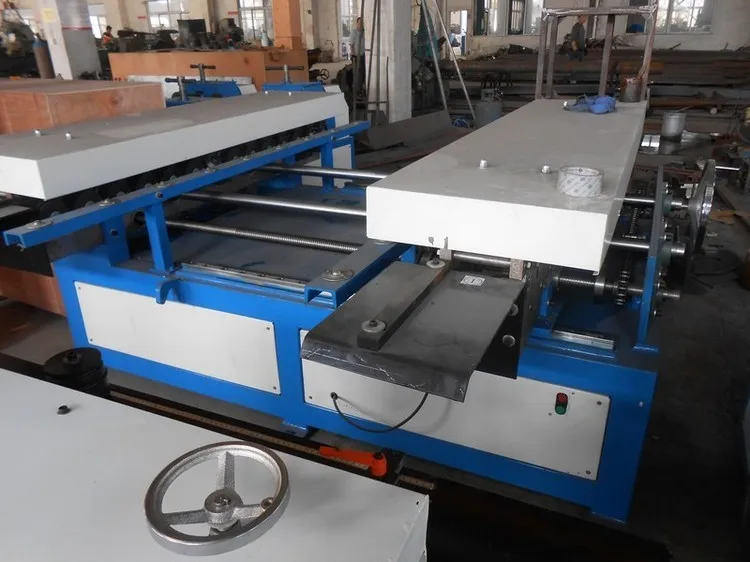

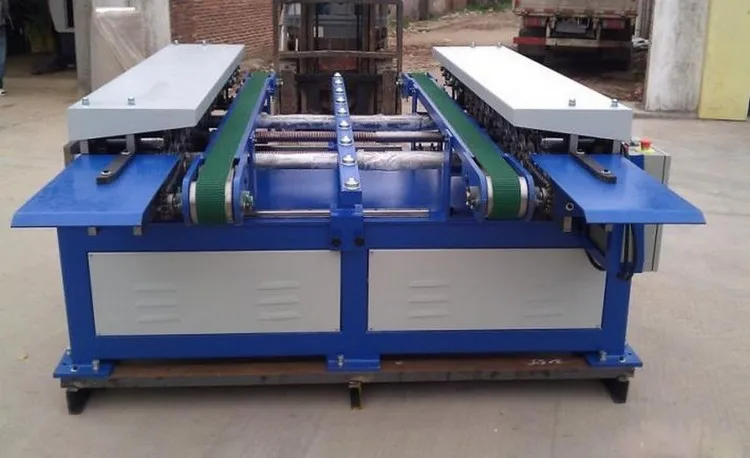

Detailed Images
Our Service

☆ Quantity
MOQ:Accept small order, big order and mix order.
More quantity, More discount.

☆ Price
Good quality, competitive price.
The more you order, the lower price you will get.

☆ Delivery
Fast delivery time: Prepare the goods within 20 working days.
Drop shipping: Door to door service are available.

☆ Shipment & Payment
Shipment: By sea,by air,by express, or we can delivery them as you required.
Payment: L/C, T/T, PayPal, Western Union are available.

☆ Competitive Advantages
Quality guaranteed and most reasonable price.
Small order is acceptable.
Prompt delivery.
Perfect after-sale service.
OEM is acceptable.

☆ After Sales Service
One year warranty for the whole machine!

Damaged parts can be replaced free of charge in the warranty period!
Accept the unconditional return for any quality problem that cause failure application of the machine!

Packing & Delivery

The normal package is wooden box(Size: L*W*H). For laser cutting machine, as the volume is too large, we will use pe film for packing or pack it according to customers special request. Delivery time is 15 working days after payment.
